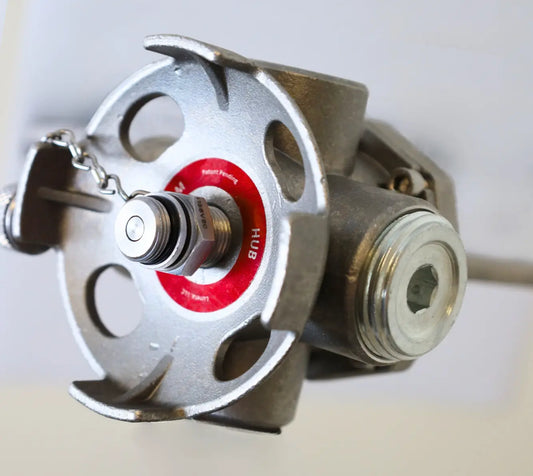

The Hub

Part Number:

HUB.050NPT.STD


The Hub of Lubricant Monitoring

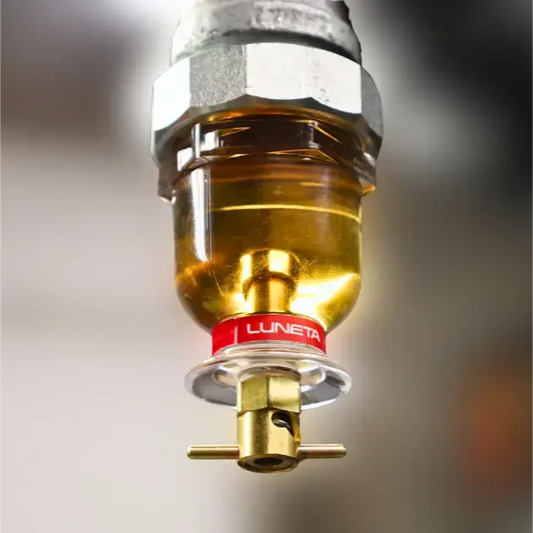

The Hub delivers more port versatility then anything else on the market. Having four lateral ports allows you to install compatible attachments including oil level sight glasses, BS&W Bowls, sample valves, drain valves, filter cart, etc. all at the same time. And with a high flow sample port, the Hub can tackle any sampling needs you have.
  • Specifications
    Shipping Weight: 3.5 lbs. (for qty. 1)
    Recommended Temperature Range: Range is -13°F to +400°F
    Recommended PSI: 500 psi working and 125 psi for sampling
    Body Material: Heavy-duty powder-coated cast aluminum and zinc plated steel
    Pilot Tube: 1/4" Stainless steel, 12" long

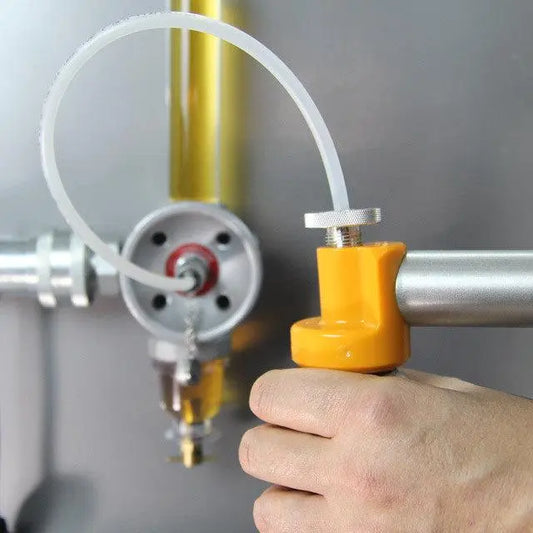

    Sample Port: High flow, easy access with shielded design
    Easy Install: Hub Body is easily attached with supplied bolts and can be adjusted every 45-degress to achieve optimal orientation
    Lateral Ports: (2) 1" NPT and (2) 3/4" NPT, Includes (4) low profile plugs for sealing lateral ports when not in use and installation hex key is included
    Specs
    View the Technical Specifications
    Description Part Number A B C D
    0.75" NPT HUB.075NPT 3.5" 2.9" 3.5" 0.75"
    1" NPT HUB.100NPT 3.5" 2.9" 3.5" 1.0"
    1.25" NPT HUB.125NPT 3.5" 2.9" 3.5" 1.25"
    1.5" NPT HUB.150NPT 3.5" 2.9" 3.5" 1.5"
    0.75" BSPP HUB.075BSPP 3.5" 2.9" 3.5" 0.75"
    1" BSPP HUB.100BSPP 3.5" 2.9" 3.5" 1.0"

  • The Hub Image 1 The Hub Image 1 The Hub Image 1 The Hub Image 1 The Hub Image 1 The Hub Image 2 The Hub Image 3 The Hub Image 4 The Hub Image 5 The Hub Image 6
