    Column Bypass Tubing Kit

    $ 61.71
    {price}% OFF
    Part Number:N/A

    Prevent cavitation with the Column Bypass Tubing Kit

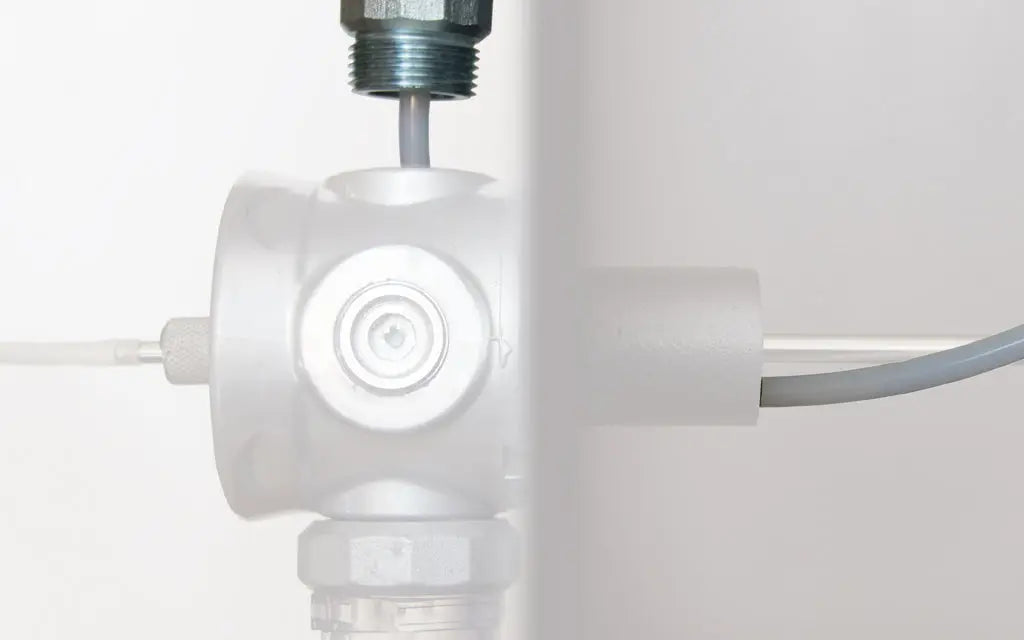

    This kit is used when the Column is installed on a Luneta Hub with a filter cart attached. The Bypass Kit will prevent the filter cart from drawing oil out of the Column. This prevents cavitation from occurring within the cart.


    It is available in 1" NPT or 3/4" NPT sizing to accomodate both sizes of the Hub's 4 ports.

    CONTENTS

    Specs

    USAGE
    WARNINGS AND DISCLAIMERS

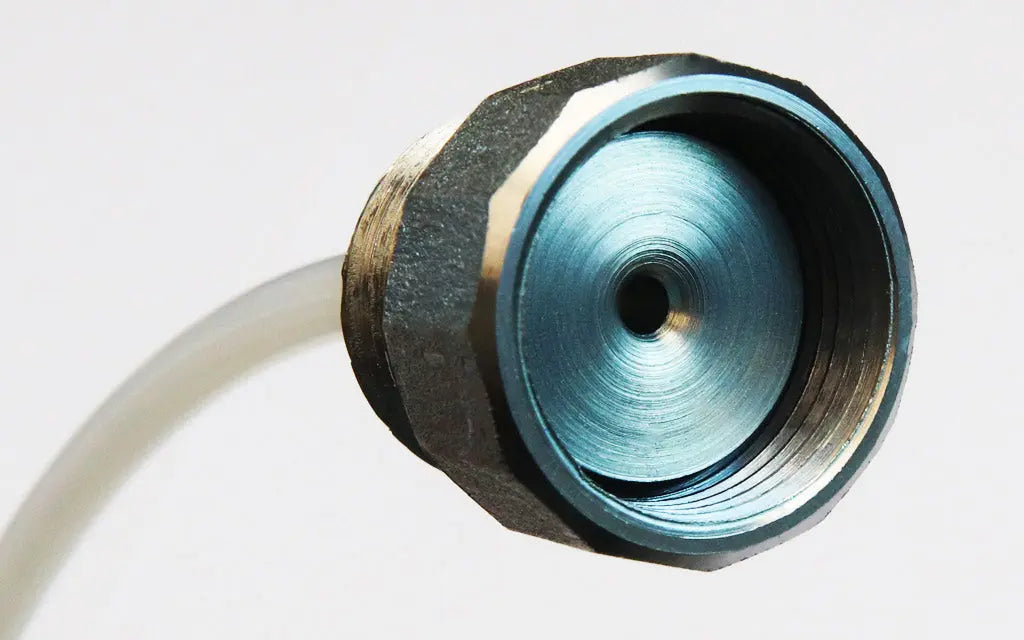

    product_COLUMN_Bypass2

    1 Column ByPass Tubing kit

    1 Manual

    product_COLUMN_Bypass2
    Application     Column and Hub Accessory
    Shipping Weight      8 oz
    Size Range    1" NPT or 3/4" NPT male threads, Fits all Column Lengths
    Specs    Zinc-plated and Stainless steel fitting and a 6' length of 1/4" ID Nylon tubing
    Chemical Compatibility     Mineral and synthetic oils compatible with Viton and PMMA®
    • The Column Bypass Tubing Kit is used to prevent cavitation while using a Luneta Column in tandem with a Hub and filter cart.
    • To install, measure and then cut the nylon tubing to the appropriate length for your equipment.
    • Feed the tubing down through the Hub's top port, running alongside the pilot tube, into your machine's reservoir.
    • Then screw the reducer into the Hub's top port following normal Column installation instructions.
    • Lastly, screw the Column into the reducer following normal Column installation instructions.

    • The Column Bypass Tubing Kit is an accessory intended only for use with the Luneta Column.
    • Results may vary if the Column Bypass Tubing Kit is used improperly.
    • The manufacturer is not liable for damages or errors caused by misuse, misapplication, or failure to follow recommended instructions.
    • Use the Column Bypass Tubing Kit only in a manner consistent with the directions.

    Customers Also Bought

    Back-up Beacon Kit Luneta LLCBeacon Module Luneta LLC

    Beacon Kit

    $ 1,425.00
    Hub Luneta LLCHub Luneta LLC

    Hub

    $ 336.94
    Condition Monitoring Pod Luneta LLCCondition Monitoring Pod Luneta LLC

    Condition Monitoring Pod

    $ 308.02
    Bowl Luneta LLCBowl Luneta LLC

    Bowl

    $ 111.75

    Frequently Asked Questions

    What keeps the Sight Glass in place?


    The locknut provides adequate pressure to keep the Sight Glass securely in place.

    Does the sampling valve have to be installed pointing up?

    No! You can install the port in whatever direction makes the most sense for your operation. It will be able to dispense oil from any angle.

    Why can't I purchase a Pod smaller than 1/2" diameter?

    The thread reducer must be 1/2" or greater to allow for the pilot tube to pass through properly. Otherwise the oil level will not display properly.

    Do I have to drain the machine to take out the indicators for viewing?

    No. Luneta's patented design allows you to rotate the indicators up out of the oil so they can be removed without spilling oil.
