    Column Vent Tube Kit

    $ 38.48
    {price}% OFF
    Part Number: VENT.COLUMN

    Protect Your Vital Equipment

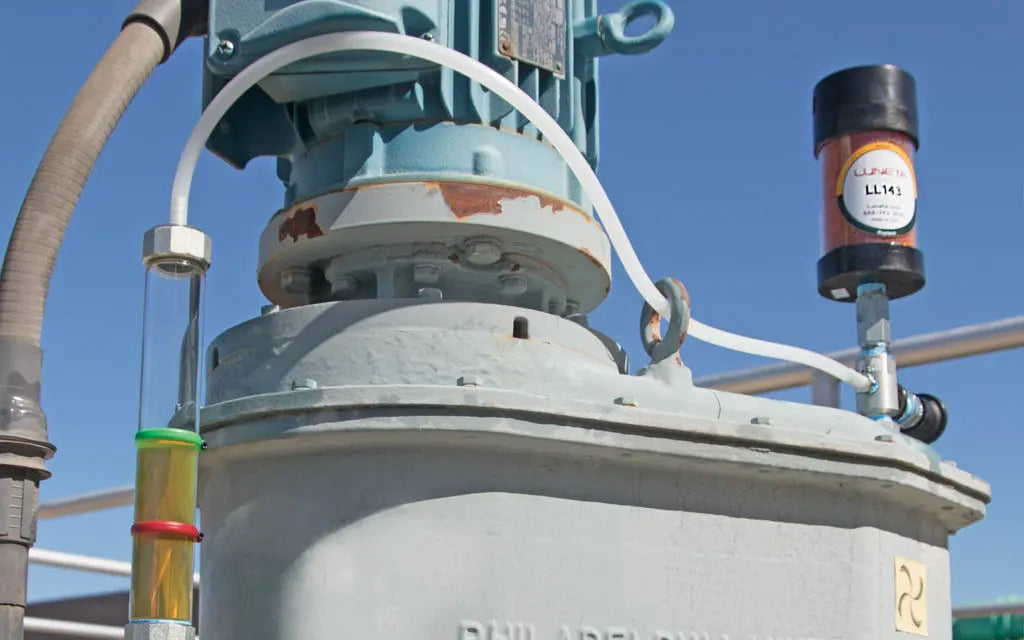

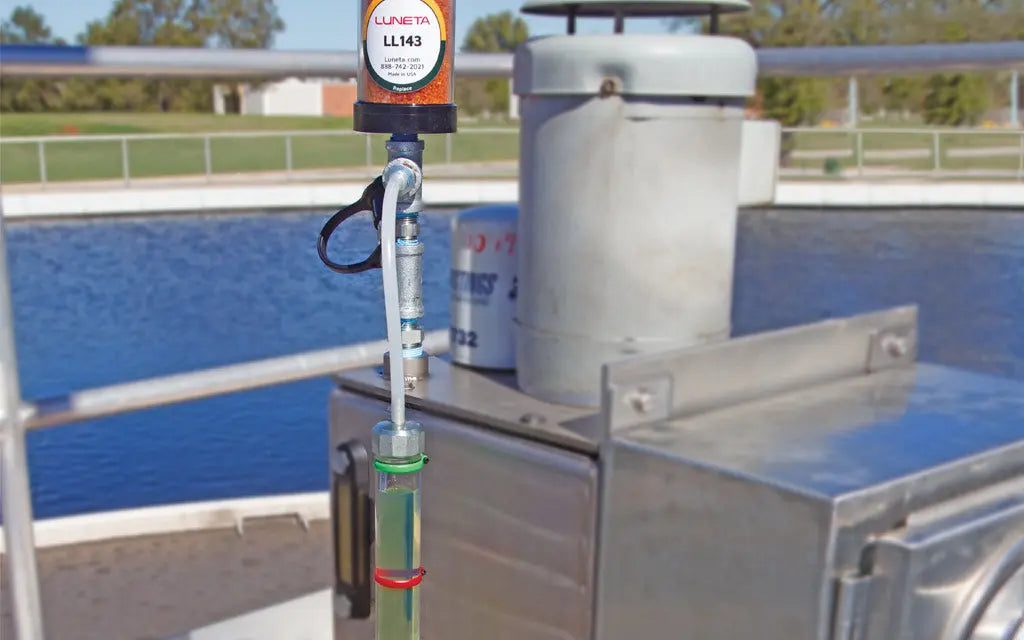

    This kit is used to vent the air at the top of the Column back to the equipment’s headspace, which creates a closed loop and takes advantage of any desiccant breather being used.

    CONTENTS

    Specs

    USAGE

    Warnings & DISCLAIMERS

    Column_Vent_Tube_Kit_page

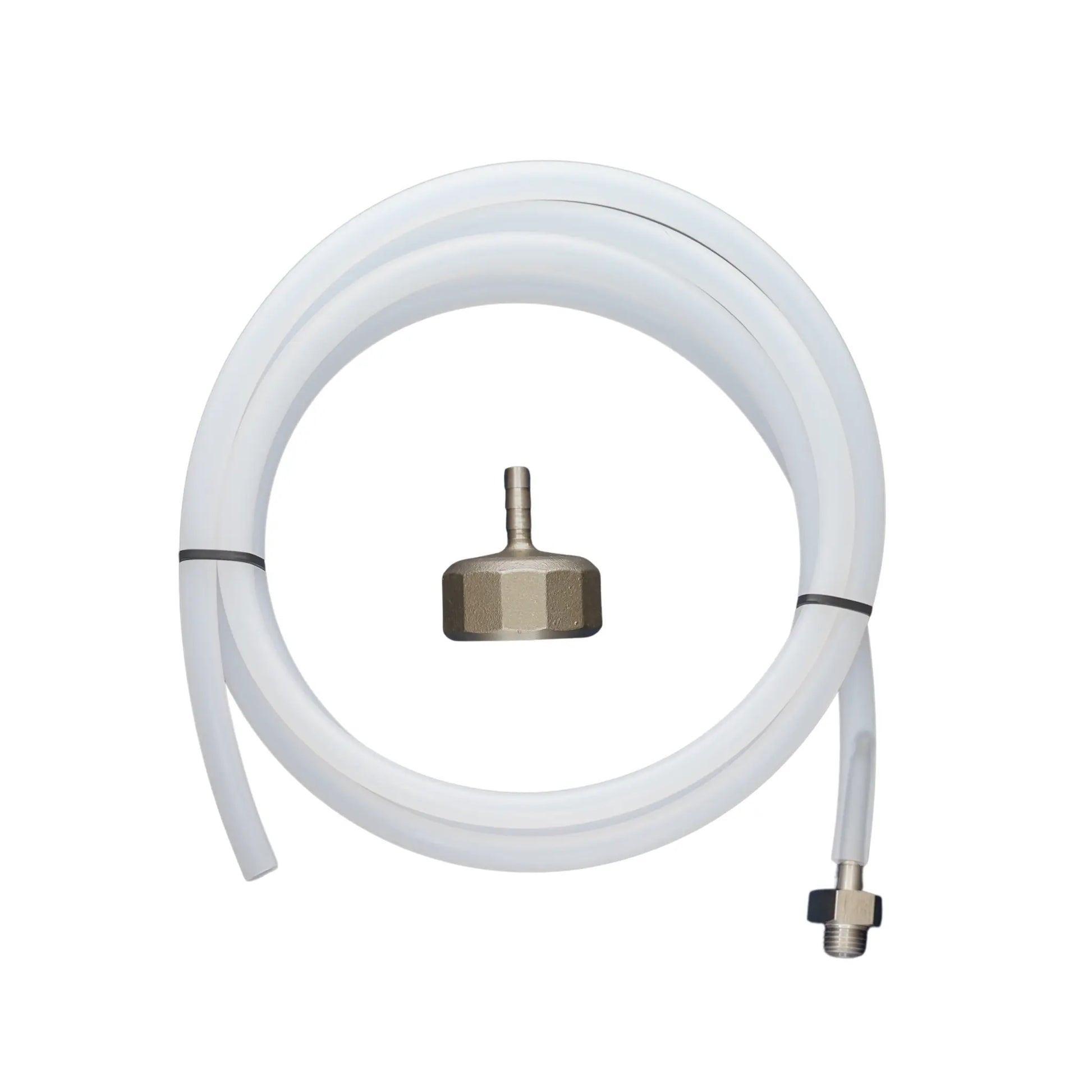

    1 1" NPT Zinc-plated Barbed fitting

    1 1/8" NPT Stainless Steel Barbed fitting

    6' 1/4" ID LLDPE tubing

    1 Manual

    Column_Vent_Tube_Kit_page
    Application     Luneta Column, all lengths
    Shipping Weight      8 oz
    Recommended Temperature    -40°F to 140°F (-40°C to 60°C)
    Materials    Stainless steel, zinc-plated steel, polyethylene (LLDPE) tubing
    • Install Column Vent Tube Kit onto the Column by following included instructions.
    • Do not use on machines with oil temperatures outside the range of -40°F (-40°C) to 200°F (94°C).
    • Do not use on machines with ambient temperatures outside the range of -40°F (-40°C) to 200°F (94°C).
    • For use with mineral and synthetic oils compatible with fluorocarbon elastomers (Viton) and acrylic plastic (PMMA).
    • Do not use on pressurized systems.
    • Not for use on moving vehicles.
    • Do not use on moving machine surfaces (e.g. reciprocating, oscillating, or rotating) or machines exposed to shock or fluid surge conditions.
    • Do not use cleaning solvents incompatible with fluorocarbon elastomers (Viton) and acrylic plastic (PMMA).
    • Install on machine port locations that are a safe distance from moving machine parts, vehicles, and foot traffic.
    • Luneta LLC is not responsible for for damages associated with incorrectly installing the CMP or for improper use as outlined in this manual and on the website Luneta.com.

    Customers Also Bought

    Back-up Beacon Kit Luneta LLCBeacon Module Luneta LLC

    Beacon Kit

    $ 1,425.00
    Hub Luneta LLCHub Luneta LLC

    Hub

    $ 336.94
    Condition Monitoring Pod Luneta LLCCondition Monitoring Pod Luneta LLC

    Condition Monitoring Pod

    $ 308.02
    Bowl Luneta LLCBowl Luneta LLC

    Bowl

    $ 111.75

    Frequently Asked Questions

    What keeps the Sight Glass in place?


    The locknut provides adequate pressure to keep the Sight Glass securely in place.

    Does the sampling valve have to be installed pointing up?

    No! You can install the port in whatever direction makes the most sense for your operation. It will be able to dispense oil from any angle.

    Why can't I purchase a Pod smaller than 1/2" diameter?

    The thread reducer must be 1/2" or greater to allow for the pilot tube to pass through properly. Otherwise the oil level will not display properly.

    Do I have to drain the machine to take out the indicators for viewing?

    No. Luneta's patented design allows you to rotate the indicators up out of the oil so they can be removed without spilling oil.
