Magnetic Drain Valve
Spiral Lock Open
Push and rotate to open the valve and facilitate quick purges of sediment. When fully rotated, the valve locks in the open position, which is useful for draining the entire reservoir. Rotate the opposite direction to close. Heavy duty spring offers resistance and protects the valve from accidentally opening.

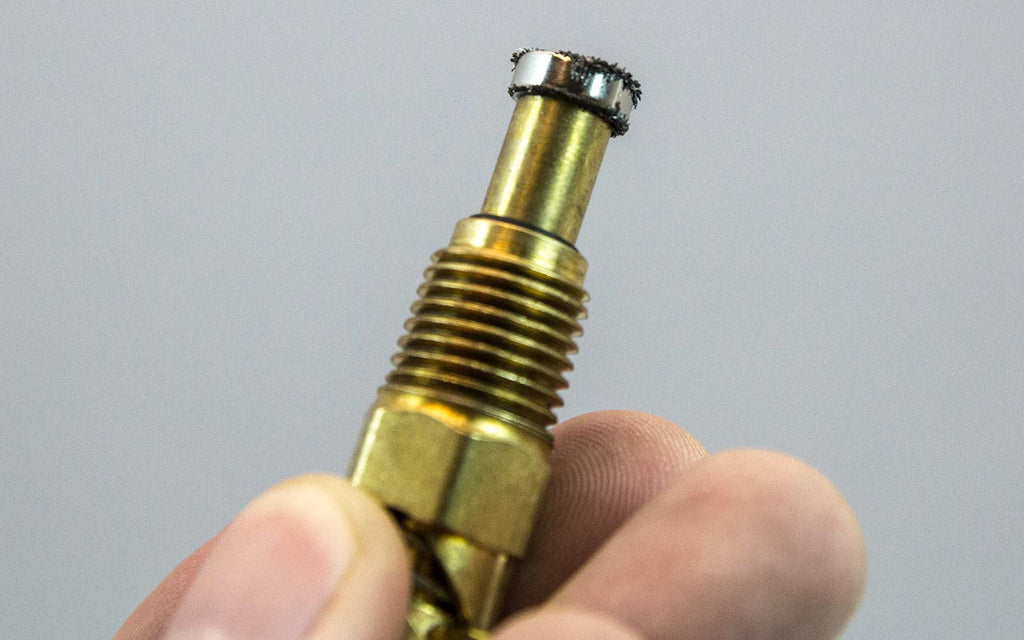

- The drain port has been fitted with a rare earth magnet to capture ferrous wear particles. The magnet is raised ½€ from drain valve surface to prevent bottom sediment and sludge from covering the magnetic surface.
Threads: ¼" NPT
Overall Length: 1.9"
